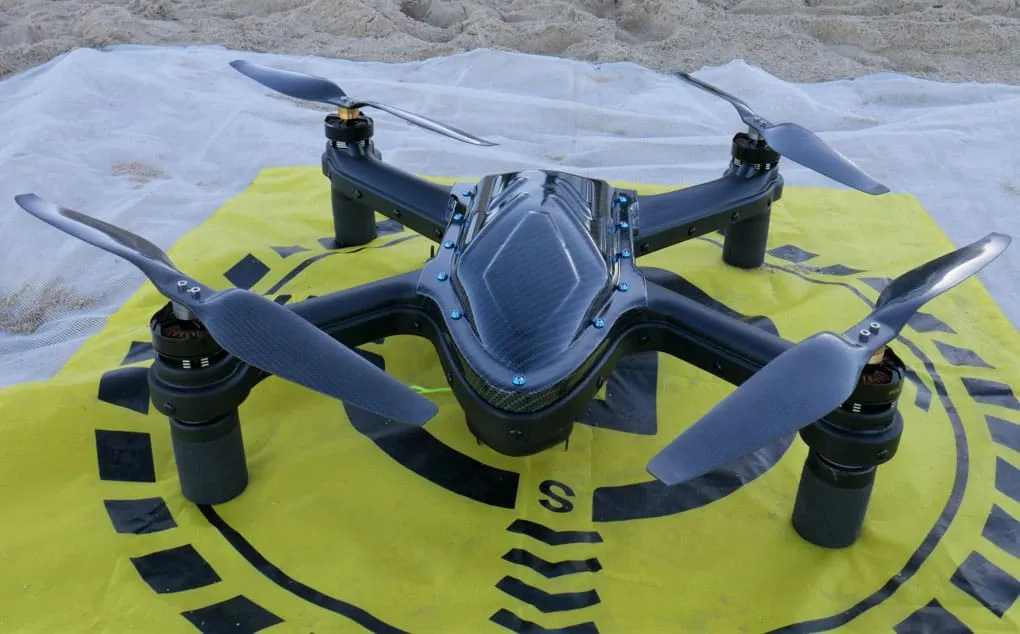

Cuta-Copter TRIDENT BOSS H12 Embedded monitor Fishing Drone
This is a drone that we just open the box at the warehouse and never used.
The Trident BOSS Fishing Drone is a large and powerful drone that allows you to fish the way you want. It can either pull 25 hooks out to 1000 meters (or more) or a large 4.5 kg bait over a shorter distance. The Trident Drone can handle strong winds (20 kt’s) and bad weather. The Trident BOSS is waterproof (IP67) from rain and the coastal salty environment.
Global Satellite Data Base
Compass calibration is required once, not at every new flight location like other drones.
Performance Flight Controller and GPS
The TRIDENT BOSS features the highly advanced Industrial grade CUAV NORA Flight Controller. The NORA features a 32-bit ARM® Cortex® H7, 480 MHz Processor with 2mb flash memory and a whopping 1MB of RAM. Breaking that down into layman’s terms – It Rocks. The shear speed data is processed results in supreme flight stability, and this is especially noticeable when carrying baits in high winds. Triple and dual sensors are built in – Feel assured of ultra-reliability as redundancy is built in.
SkyDroid T10 10ch Radio
This high-quality radio is fitted with sand covers over the gimbals to improve the overall weather resistance. Flush mounted buttons and low-profile toggle switches have been used to prevent damage. The 2 x 18650 lithium batteries provide greater than 20 hours radio time on full charge.
App control
The Android APP allows special touch to fly options such as ARM and Disarm, Take-off, Waypoint missions, follow-me modes and much more. The APP enables drone parameters to be changed wirelessly – (For advanced users)
GPS
GPS (MAIN)– The CUAV NEO 3 M9N satellite receiver enables simultaneous reception of 4 Global Navigation Satellite Systems ‘GNSS’, not just two like other brands – The BOSS connects to all four GNSS satellite platforms being GPS, Galileo, GLONASS and BeiDouh.
Backup -Industrial grade RM3100 compass
Water Proofing
The Trident has all the main electronics safely installed under the water-proof canopy. This allows for easy access to the system when service is required.
Double flotation
The TRIDENT is filled with laser cut foam for buoyancy providing level 1 of flotation. The landing feet also provide additional floats.
Quick Switch
The installed quick switch limits the need to open the battery bay between bait drops. This bridge switch completely stops power draw from the battery.
Backpack
Cuta Copter comes with a backpack carry case making it easy to carry hands free.
Robust Design
Cuta Copter has always prided itself on building the toughest drones on the market, and the new TRIDENT BOSS takes it a step further with even greater survivability.
SkyDroid APP
Video feed, Height, Distance, parameters, Map, calibration, Way point mission planning and much more.
TRIDENT BOSS
Advanced flight modes
• Alt/Hold mode
• POS/Hold mode (Anti Pendulum Mode)
• Loiter Mode
• Follow me mode
• Return to Land mode
• Come to me mode
• GPS Waypoint mission planning
• Click to Save – GPS position saved
• POS/Hold mode (Anti Pendulum Mode)
• Loiter Mode
• Follow me mode
• Return to Land mode
• Come to me mode
• GPS Waypoint mission planning
• Click to Save – GPS position saved
Waterproof Electronic Bait Release
The bait release mechanism is simple to use and features metal gears and is waterproof with a 4.5kg payload capacity.
Reef Spotting Camera
The TRIDENT BOSS is equipped with a HD 720p camera with digital real time video transmission up to 3KM. Camera settings like resolution, brightness, contrast, and saturation can all be adjusted via the APP. Pictures can be saved directly to your mobile or tablet.
Multiple Safety Features
Safe and More enjoyable flights
SELF-PROTECT FEATURE ENABLES BAIT TO BE DEPLOYED ON LOW BATTERY RTL, LOSS OF SIGNAL RTL, LOSS OF GPS, MAGNETIC INTERFERENCE AND LOSS OF THRUST. RETURN TO LAND FUNCTION ON LOSS OF SIGNAL AND LOW BATTERY. MAGNETIC INTERFERENCE DETECTION AND AUTO ADJUSTMENT, VERBAL WARNINGS AND MUCH MORE.
Self-protect Low Battery – The bait release is automatically deployed on Low battery.
Self-protect Loss of signal – The bait release is automatically deployed on Loss of signal.
Self-protect Thrust Loss Detection – The bait release is automatically deployed when thrust loss is detected – such as line snag or bird strike to line.
Loss of Signal – Return to Land‘RTL’ function is activated for loss of signal.
Low Battery – Return to Land ‘RTL’ function is activated on low battery threshold.
Voltage Monitoring feature – The battery voltage is displayed on the App in addition to verbal updates for easy battery level awareness. In addition, the craft will not arm/start motors if it detects the battery is not at a safe level for flight.
Anti-pendulum feature –(POS.HOLD) mode has a more controlled acceleration and de-acceleration to assist in limiting the degree to which a pendulum motion can occur with the bait.
RTL speed – Return to Land ‘RTL’ speed has been increased to get the drone off the water as soon as possible.
Landing detection – The new landing detect feature will shut motors off as soon as the drone detects a landing during auto land from RTL.
Distance and Altitude Geofence – The parameters are set at factory to 700 metres and a height of 40 metres. (Adjustable for advanced users) RTL can also be set for Alt and Distance breach if required via the APP.
Magnetic interference monitoring – Auto adjustment and verbal warnings.
Propulsion System
- High Capacity 6S LiPo battery
- 40A Electronic Speed Controllers 'ESC'
- High thrust waterproof motors
- 15" High quality carbon fiber propellers
Performance Overview
The Ultimate Drone for Fishing
Double Water Proofing
The Trident has all the main electronics safely installed under the water-proof canopy. This allows for easy access to the system when service is required.
High Rated Wind Capability
Cuta-Copter TRIDENT can handle wind speeds up to 40 km/h and wind gusts up to 50 km/h or Beaufort Force level 6.
Multiple flight modes
GPS, ATTI, POS/HOLD, RTL, Return to land low battery and loss of signal, Self-protect - loss of signal and low battery.
Quick Switch
The installed quick switch limits the need to open the battery bay between bait drops. The craft is quickly switched on and off using the supplied bridge switch.
GPS
The New advanced NORA NEO3 GPS enables concurrent reception of all 4 Global Navigation Satellite Systems ‘GNSS’ not just two such as GPS, GLONASS, Galileo, and BeiDouh. It is not uncommon to acquire over 30 satellites during flight. In addition the BOSS has a backup Industrial grade compass.
New Servo Release
A new waterproof servo is standard and can be used in the harshest of marine environments.
New Weatherproof 10ch Radio
The new long-range radio is supplied with sand/water covers over the gimbals to protect against sand and dust. The low mounted switches also protect against damage.
720P HD Digital camera
The Trident is equipped with a fixed HD Digital 720p Camera designed to spot reef and confirm bait drops out to the Geo fence of 700M. Signal strength can reach out to 3KM.
Multiple Safety Features
Self protect feature enables bait to be deployed on Low battery RTL, Loss of signal RTL and loss of thrust. Return to land function on Loss off signal and low battery. Magnetic interference detection and auto adjustment, Verbal warnings and much more.
Performance Flight Controller
The TRIDENT BOSS features the highly advanced Industrial grade CUAV NORA Flight Controller. The NORA features a 32-bit ARM® Cortex® H7, 480 MHz Processor with 2mb flash memory and a whopping 1MB of RAM. Breaking that down into layman’s terms – It Rocks. The shear speed data is processed results in supreme flight stability, and this is especially noticeable when carrying baits in high winds. Triple and dual sensors are built in – Feel assured.
Distance And Altitude Geofence
Distance is set to 700 metres and 40 metres for altitude. Geofence parameters are set to these parameters to enable Low battery Return to Land 'RTL' function with reserve in case of strong winds. Any adjustment to these parameters are at the risk of the user.
SPECIFICATIONS
TRIDENT BOSS Propulsion System
| High capacity 6S LiPo Battery |
| 40A Electronic Speed Controllers ‘ESC’ |
| 40A Electronic Speed Controllers ‘ESC’ |
| 15” High quality carbon fibre propellers |
Advanced Flight Modes
| ALT/Hold mode |
| POS/Hold mode (Anti Pendulum Mode) |
| Loiter Mode |
| Follow me mode |
| Return to Land mode |
| Come to me mode |
| GPS Waypoint mission planning |
| Click to Save – GPS position saved |
AIRCRAFT
| Waterproof Level: Waterproof seal on main electronics chamber |
| Surface Buoyant: Level 2 Flotation |
| Drone Weight: 1780g (without battery) |
| Dimensions: 455mm x 455mm |
| Max Ascend Speed: 10m/s |
| Max Descend Speed: 3m/s |
| Max Flight Speed: 65kph (User Adjustable) |
| Max Flight Altitude: 40M – Set at factory |
| Wind Rating Typical Maximum: 40kph (21-22Knots) |
| Wind Rating Peak Gusts: 50kph(26-27 Knots) |
| Max Flight Time (per charge): 4 drops at 300M, 700gm bait, (Max load – 1 drop to 700 meters) |
| Max Flight Range: 3 km – (Geofence set to 700M) |
| Max Payload Capacity: 4.5KG (Recommended safe lifting weight 4.0KG) |
| ESC: 40A sealed in waterproof dielectric resin |
| Propellers: 15” carbon fibre propellers |
| Working Temperature: -10°C ~ 40°C |
| APP: SkyDroid GCS (Android Only) |
| Motor: Brushless/Waterproof |
GPS
| MAIN: CUAV Neo 3 -Ublox M9N satellite receiver. Enables simultaneous reception of 4 Global Navigation Satellite Systems ‘GNSS’ – GPS, Galileo, GLONASS and BeiDouh. |
| BACKUP: Industrial grade RM3100 compass! |
FLIGHT CONTROLLER
| Type: NORA (PX4) |
| Microcontroller: STM32H7 |
| Processor: 32 Bit Arm® Cortex®-M7, 480MHz, 2MB flash memory, 1MB RAM |
| Sensors: 3 x Accelerometers, 3 x Gyroscopes, Magnetometer, 2 x Barometers |
REMOTE CONTROL
| Weight: 660g |
| Frequency: 2.400-2.483GHz |
| Range: 3 km (unobstructed, free of interference) Set at factory to 700M |
| Modulation: New FHSS |
| Working Current: 100mAh |
| No. of Channels: 10 |
| Battery: 2 X 18650 Lithium batteries (Provided) |
| Video Transmission |
| Range: 3 km Max (unobstructed, free of interference) |
| Working current: 180mA |
| Camera: 720P HD 1280×720 |
VIDEO TRANSMISSION
| Range: 3 km Max (unobstructed, free of interference) |
| Working current: 180mA |
| Camera: 720P HD 1280×720 DIGITAL |
STANDARD BATTERY (6S/5000MAH 22.2 LIPO)
| Standard Battery (6S/5000MAH 22.2V 60C LiPo) |
| Battery Type: LiPo |
| Battery weight:743gms |
| Operating Temp: -10̊ to 50̊C |
| Charging Current: 5AMP |
| Voltage: 22.2V |
Charger
| Type: 100W Smart Balance Charger LiPo |
| Battery Charge Time: 60mins at 30% level |
